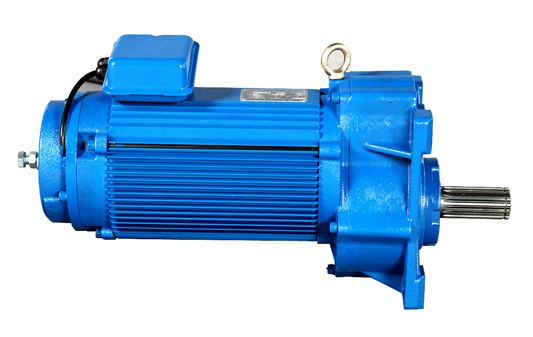

Without brake and soft start
Without brake Without soft start

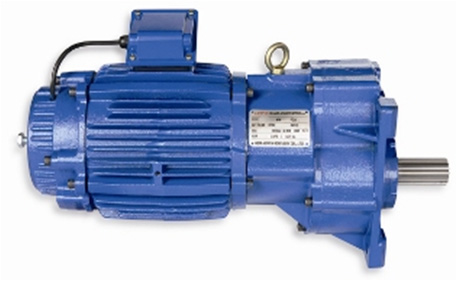

With brake and soft start
Characteristics
1. The motor`s case is made by aluminum alloy material with light weight,Excellent thermal diffusion and prominent feature.
2. Adopting steel alloy material to complete the precise Gear that in process of quench treatment and grinding procedure to make the motor move at low noise.
3. A Buffer is designed to enhance the motor`s life as wellas to decrease the impact ,When the motor is running
4. IP54 motor comes with high starting torque,excellent thermal diffusion,compact,Low current,reliability and duability.
5. incorporating a Direct electro-magnetic Brake, the driving force of the motor can by easily adjusted

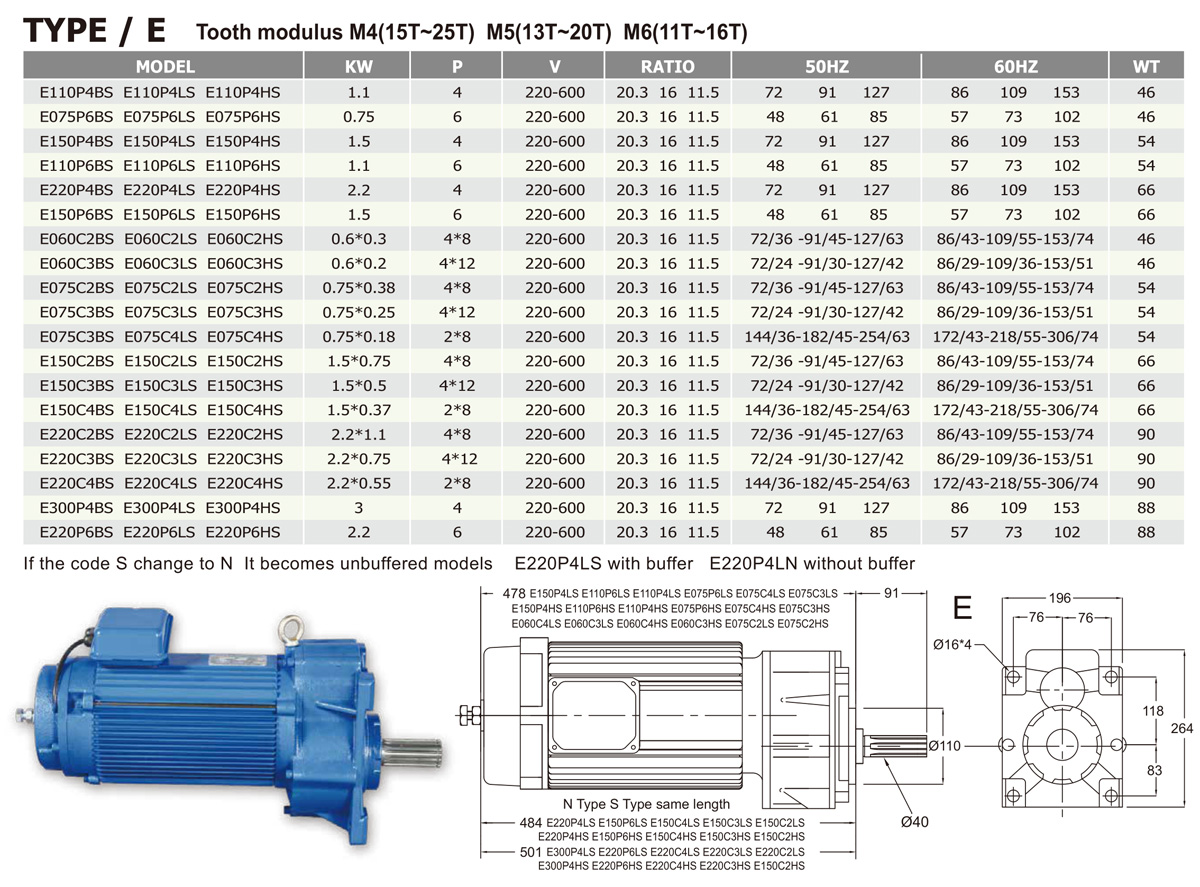

Definition of the code
E220P4LS-60-220-M6X15L
Type / E
Horse power (HP) / 2.2KW(3HP)
Various polarities / C2 ; C3 C4 C2 /4.8P C3/4.12P C4 /2.8P
With buffer / S ;without buffer / N
Number of poles / P4
frequency / 60
voltage / 220
modulus / M6
number of teeth / 15
low speed / L;high speed / H
